| Frame | Hardtail, AL6061-T4/T6 |
| Size | 38/41/46/51/56 cm |
| Fork | RST Capa-ML, 80 mm, mechanical lock out |
| Rear shock | |
| Frontear derailleur | Shimano FD-M310 |
| Rear derailleur | Shimano Acera, RD-M390 |
| Shifter | Shimano ST-M310 |
| Crank set | Shimano Acera, FC-M311, 42-32-22T, <=46cm 170mm else 175mm |
| Cassette sprocket | Shimano CS-HG31, 11-13-15-17-20-23-26-34T (24sp) |
| Chain | KMC Z8/HG50 |
| Hubs | Shimano HB-RM70/FH-RM70 |
| Rims | EXAL TX19, 559-19*21 mm |
| Tires | Kenda K1027 Kadre 26×2.10 |
| Brakes | Shimano BR-M422 V-brake |
| Handlebar | iDEAL, riser bar, 66 cm, backsweep 5°, rise 15 mm |
| Stem | iDEAL, <=46 cm 75 mm, else 90 mm, 7° |
| Seat post | iDEAL, 31.6*350 mm |
| Saddle | Selle Italia Q-BIK |
| Lightning set | |
| Mudguards | |
| Carrier |

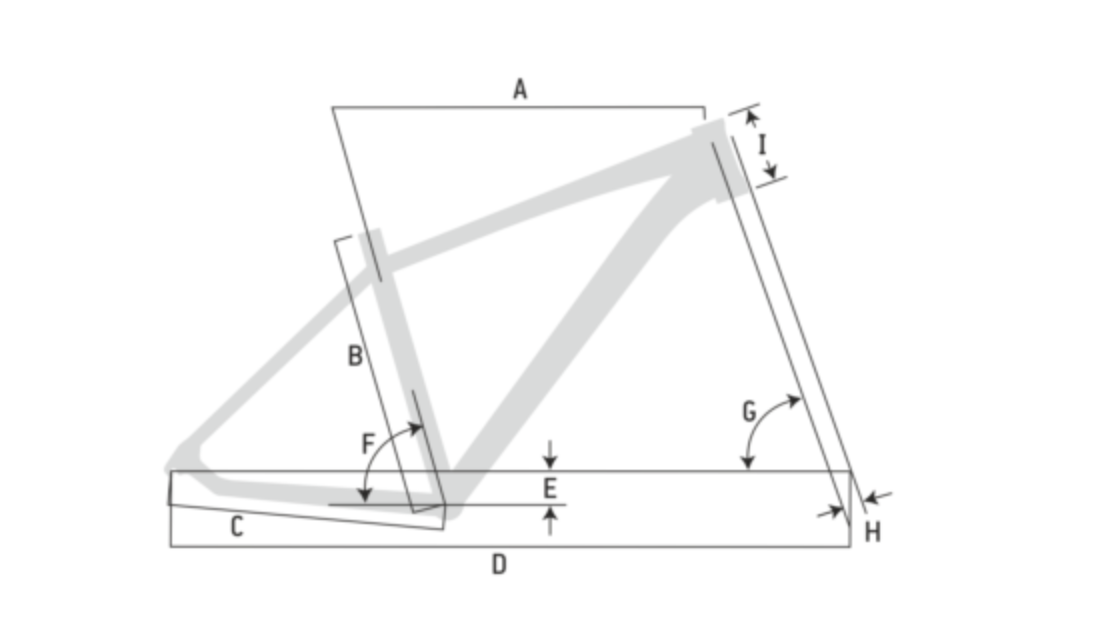

| Frame Height | XS | S | M | L | XL | |
| 38 | 41 | 46 | 51 | 56 | ||
| A’ | Top Tube (parallel) | 553.2 | 553.2 | 575.7 | 586.9 | 607.8 |
| B | Seat Tube | 380 | 415 | 465 | 515 | 565 |
| C | Rear Center | 425 | 425 | 425 | 425 | 425 |
| D | Wheeel Base | 1043 | 1043 | 1061 | 1067.3 | 1088 |
| E | B.B. Drop | 38 | 38 | 38 | 38 | 38 |
| F | Seat Angle | 74° | 74° | 73°30′ | 73°30′ | 73°30′ |
| G | Head Angle | 70°30′ | 70°30′ | 70°30′ | 71° | 71° |
| H | Offset | 39 | 39 | 39 | 39 | 39 |
| I | Head Tube | 120 | 120 | 130 | 140 | 150 |
| Fork Length | 470 |

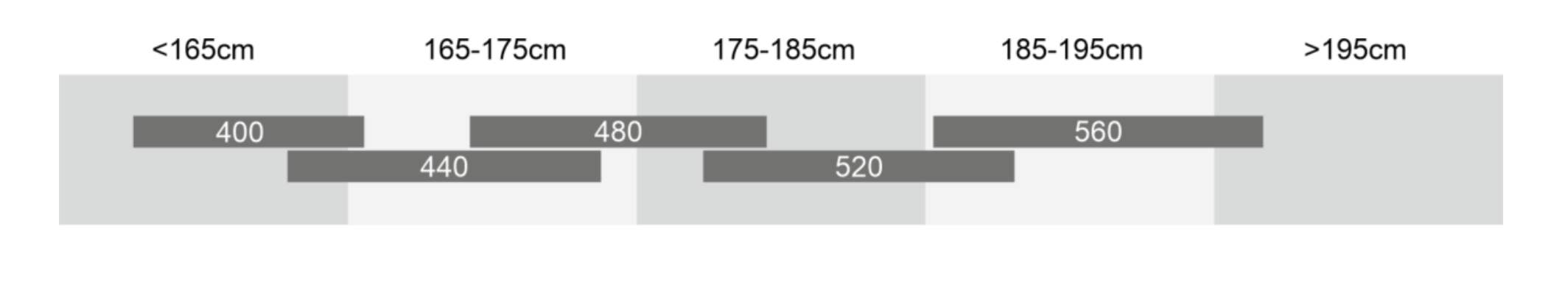

| Rider Height (cm) | Frame Height (cm) |
| … – 165 | 38 |
| 165 – 170 | 41 |
| 170 – 175 | 41 – 46 |
| 175 – 180 | 46 |
| 180 – 185 | 46 – 51 |
| 185 – 195 | 51 – 56 |
| 195 – … | 56 |
